OPTICAL PRODUCT

SENSING SYSTEM

DAS

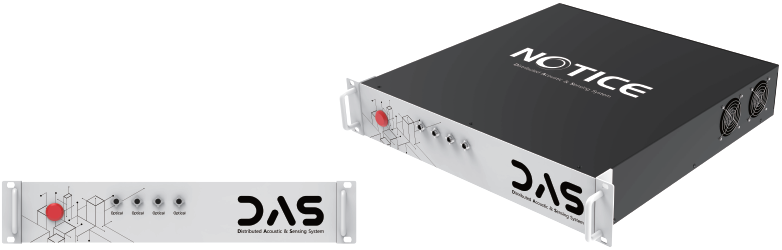

제품 이미지

 Our Distributed Acoustic Sensor(DAS) with excellent pattern recognition software can detect and locate the distributed thousanfs of acoustic events. Whenever any vibration or sound around its sensing fiber is detected, our DAS system will process the measured data in real-time and its pattern recognition software will recognize the types of the events, such as digging, pipeline leakage, fence breach, vehicle moving person walking. And, the detected events are reported to the alarm server to help operators take actions to protect theor facilities.
APPLICATIONS
detecting digging
detecting pipeline leakage
detecting fence breach
SPECIFICATIONS
Measurement Properties
Measurement range 30Km SMF-28
Spatial resolution 5Km
Sampling resolution 1m 10 km Measurement distance
2m 20 km Measurement distance
4m 40 km Measurement distance
Measurement Freguency 2.5kHz or higher
Receiver sensitivity Less than 0.16 rad
General Properties
Connetor type SC/APC Depends on user's requiremnet
Number of Channels 4 Channels No. of channels can be changed
Operating temperature -10 to 40°C
Storage temperature -40 to 80°C
Humidity 5 to 95 % (Relative humidity)
Interface (Eternet) 1Gbit Ethernet (655.36Mbps)
Dimensions Standard 19 inch 3U sub-rack
155mm(H) x 470mm(W) x 326mm(D), 9Kg Weight
Power 100 to 240V AC (50 to 60 Hz)
Power consumption < 15W
