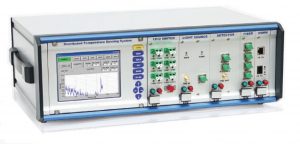

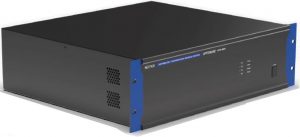

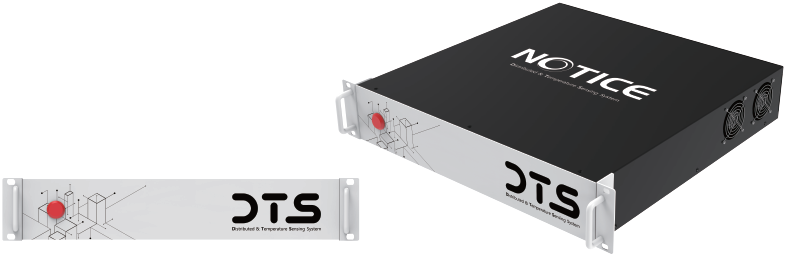

Our Distributed Temperature Sensor(DTS)with operating system is designed for easy installation and management in the field.
Several DTS units can be controlled remotely by Ethernet configuration.
Thus, it is possible to construct database for the analysis of a certain crisis.
This allows our DTS to be used for effective maintaining and risk management even in wide range area.
The DTS unit using MMF can be optimized for 16 km ranges allowing for enhanced temperature resolution
⇒(especially, 30 km range for SMF version).
 |
 |
| Measurement Properties | |||
| Measurement range | 16 Km | 50/125 GI-MMF | |
| 30 Km | SMF-28 | ||
| Data measurement | Double-ended | Singled-ended is possible | |
| Spacial resolution | 1m | 10 to 90% Step | |
| Measurement temp. Range | - 20 to 120 °C | Depened on sensor cable | |
| Temperature resolution | ± 0.5°C | Depened on data average | |
| Measurement Time | 10 s to 1 Hour | ||
| General Properties | |||
| Connector type | LC/APC, E2000/APC | Depends on user's requirement | |
| Number of channels | 6/12 Channels | No. of channels can be changed | |
| Operating temperature | - 20 to 60 °C | ||
| Storage temperature | - 40 to 80 °C | ||
| Humidity | 5 to 100 % | relative humidity | |
| Interface | Ethernet | 10/100/1000 Base-T, 100 Base-F compatible | |
| USB | USB 2.0 or 3.0 | ||
| Internal memory | 100G Byte | ||
| Dimensions | Standard 19 inch 3U Sub-rack | ||
| 155mm(H) x 470mm(W) x 326mm(D), 9Kg weight | |||
| Power | 100 to 240V AC (50 to 60Hz) Adaptor, DC 24V | ||
| Power consumption | < 15W | ||
